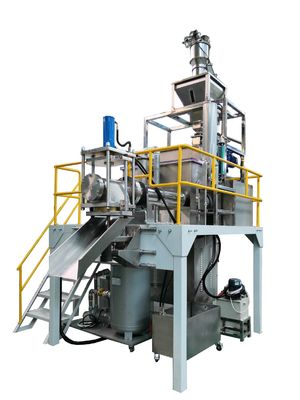

Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity

Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity

Large Image :  Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity

Product Details:
Place of Origin: Shandong, China
Brand Name: zhuoheng
Certification: CE BV GOST
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $100,000.00/sets >=1 sets
Packaging Details: High Quality Spaghetti Noodle And Pasta Macaroni Making Extruder Machine are always wrapped by film completely and safely and then packed in strong fumigation-free case or 20'/40' container for delivery. We take good care of each machine for you.
Delivery Time: 20-30 days
Supply Ability: 10 Set/Sets per Month High Quality Spaghetti Noodle And Pasta Macaroni Making Extruder
Contact Now

Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity

Description
Applicable Industries: Food & Beverage Factory Showroom Location: None
Condition: New Production Capacity: 80-300kg/h
Type: Pasta Macaroni Making Extruder Machine Voltage: 380V/50HZ Or Customized
Power: 21/37/45 Kw Dimension(L*W*H): 20/25/35*4*4m
Warranty: 2 Years Marketing Type: Ordinary Product
Machinery Test Report: Not Available Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years Core Components: Motor
Key Selling Points: Automatic After-sales Service Provided: Engineers Available To Service Machinery Overseas
Name: Spaghetti Noodle And Pasta Macaroni Making Extruder Machine Function: Multifunction
Material: Stainless Steel Capacity: 80~300 Kg/h
Color: Silvery Raw Material: Whear Flour
Motor: Siemens Inverter: ABB
Energy: Electricity After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None Port: Qingdao

Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 0
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 1
Model
Installed Power
Consumption Power
Output
Host size
TXF-100
35kw
21kw
80-100kg/h
2.2x0.8x1.8m
TXF-200
50kw
37kw
200kg/h
3.9x2.8x4.5m
TXF-300
60kw
45kw
300kg/h
4.5x3.5x4.5m

100kg/h
200kg/h
Frequency converter
Delta
Delta
Electrical device
Schneider (such as: air switch, AC contactor)
Schneider (such as: air switch, AC contactor)
Main motor
Siemens
Siemens
PLC controller system
Schneider
Schneider
Host speed
25r/min
35r/min
Rotary cutting speed
100r/min
100r/min
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 2
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 3

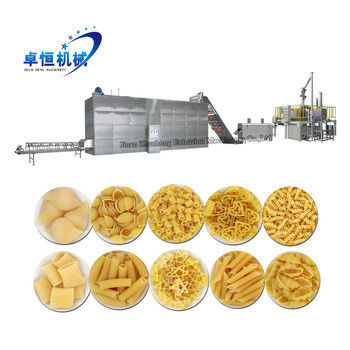

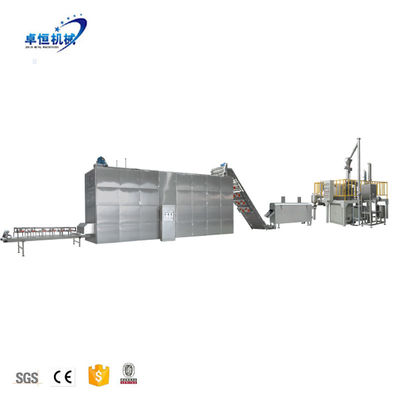

This machine line can use wheat flour as main material to make different shapes pasta , like tube , elbow , screw , shell etc .Equipment configuration is perfect , advanced production technology ; good quality products , simple and reliable operation ; is the ideal equipment to make macaroni .
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 5
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 7
1.Vacuum feeding system: it will convey the flour to the storage hopper on top of the extrusion unit automatically.
2.Vacuum mixing and extrusion system: mixing and extrusion both are in vacuum condition, mixing includes high-speed mixing, primary mixing, secondary mixing.
3.Cutting system : speed adjustable
4.Vacuum creation system:consists of vacuum water tank, vacuum pump, vacuum buffer tank, vacuum pipe, vacuum pressure gauge, check valve and three-way deflation valve.
5.The automatic water supply system includes storage water tank, water pumps, water inlet and outlet pipes, quantitative valve, flow meter and water tower.
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 8

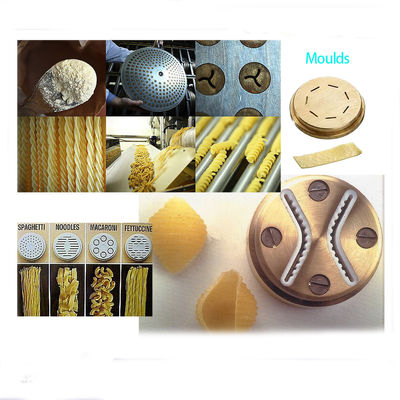

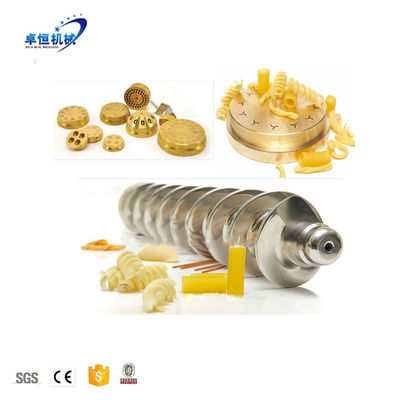

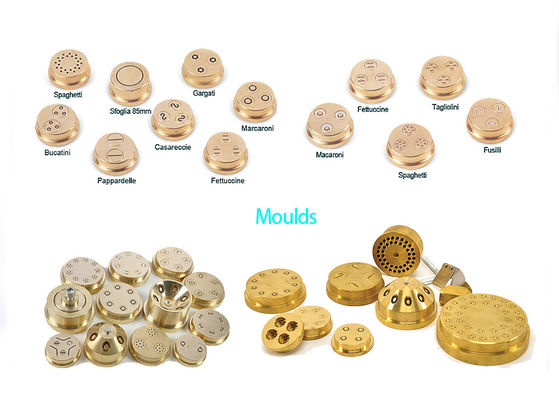

The mold is imported from Italy, the material is copper + Teflon, and the mold plate is made of copper, which will make the surface of the produced product smoother.
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 9
Function: Low temperature and slow baking ventilation, with double doors, heat preservation material at 50-60℃ for 6-8 hours, energy saving 40%-50% than conventional Function: evenly heated, better baked products
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 10
Click here for detailed information
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 11
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 12
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 13
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 14
Jinan Zhuoheng Extrusion Machinery Co.,LTD established since 2008 year byexperienced engineers. We SINCERELY treat every customer and provide excellent after-sale service.
Zhuoheng has developed a "one stop factory" for the food machinery industry.Zhuoheng has a comprehensive manufacturing program offering equipment and systems to customers in the extruded snack food processing machinery and allied industries. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 15
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 16
Exported countries:
Asia { Thailand, Indonesia, East Timor, South Korea, India, Bangladesh, Saudi Arabic, Turkey, Iraq, Israel,Kazakhstan,Tajikistan,Uzbekistan, Turkmenistan }
Africa { Nigeria, Benin, Algeria, Egypt, Ethiopia, Ghana, Namibia, Uganda, Zimbabwe}
Europe { Russia, Bulgaria, Ukraine, Poland}
North America { America, Canada }
South America { Brazil, Bolivia }
Oceania { New Zealand }
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 17
Delivery: 20-40 working days after deposit.
Packing:Machines are always wrapped by film completely and safely and then packed in strong fumigated case and 20'/40' container for delivery.
Spaghetti Noodle And Pasta Macaroni Making Extruder Machine with 80-300 kg/h Capacity 18
FAQ
Q1. Are you a manufacturer or a trading company?
A: We are a professional manufacturer of food & feed extrusion machine.
We have own factory and R&D department. SGS has certified our company on site.
Q2. What is your payment terms?
A: Strongly recommend to use Alibaba’s Trade Assurance.
T/T :30% prepayment,70% before delivery. L/C at sight is available.
Other payment is negotiable
Q3.Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q4. What about the lead time?
A:Regular products:20-30 working days Customizable products:30-40 working days.
Q5. Can you provide food or feed formula ?
A: We can provide basic formula for produce the food etc.
And help customer to produce new products according to customer’s formula.
Q6.What after-services do you provide?
A: Send engineers for installation, trial running and training workers at customer's site.
Handling the problems occurred during use.
Supply spare and wearing parts on discount.
Help customers to solve any other problems.
