Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution

Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution

Large Image :  Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution

Product Details:
Place of Origin: Shandong, China
Brand Name: zhuoheng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $65,000.00/sets 1-1 sets
Packaging Details: Your automatic pasta machine/italian pasta production line are always wrapped by film completely and safely and then packed in strong fumigation-free case or 20'/40' container for delivery. We take good care of each machine for you.
Delivery Time: 20-30 days
Supply Ability: 8 Set/Sets per Month automatic pasta machine/italian pasta production line
Contact Now

Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution

Description
Applicable Industries: Food & Beverage Factory Showroom Location: None
Condition: New Production Capacity: 80-300kg/h
Type: Automatic Pasta Machine/ Voltage: 380V/50HZ Or Customized
Power: 21/37/45kw Dimension(L*W*H): 20/25/35*4*4m
Weight: 5000 KG Warranty: 2 Years
Marketing Type: Ordinary Product Machinery Test Report: Not Available
Video Outgoing-inspection: Provided Warranty Of Core Components: 2 Years
Core Components: Pressure Vessel Key Selling Points: Automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas Name: Automatic Pasta Machine/italian Pasta Production Line
Function: Multifunction Material: Stainless Steel
Capacity: 300 Kg/h Product Name: Automatic Pasta Machine/italian Pasta Production Line
Color: Silvery Raw Material: Whear Flour
Feature: Single Screws Extruder Motor: Siemens

Products Description
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 0
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 1
Model
Installed Power
Consumption Power
Output
Host size
TXF-100
35kw
21kw
80-100kg/h
2.2x0.8x1.8m
TXF-200
50kw
37kw
200kg/h
3.9x2.8x4.5m
TXF-300
60kw
45kw
300kg/h
4.5x3.5x4.5m

100kg/h
200kg/h
Frequency converter
Delta
Delta
Electrical device
Schneider (such as: air switch, AC contactor)
Schneider (such as: air switch, AC contactor)
Main motor
Siemens
Siemens
PLC controller system
Schneider
Schneider
Host speed
25r/min
35r/min
Rotary cutting speed
100r/min
100r/min
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 2
The purpose of automatic Italian pasta production lines is the production, processing and packaging of food dough (which can be long and short) having a shelf life that generally ranges from a few weeks up to about three months. The product is realized by means of kneading and molding, which are different depending on the required format and the kind of pasta to be produced.
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 3
This machine line can use wheat flour as main material to make different shapes pasta , like tube , elbow , screw , shell etc .Equipment configuration is perfect , advanced production technology ; good quality products , simple and reliable operation ; is the ideal equipment to make macaroni .
1.Vacuum feeding system: it will convey the flour to the storage hopper on top of the extrusion unit automatically.
2.Vacuum mixing and extrusion system: mixing and extrusion both are in vacuum condition, mixing includes high-speed mixing, primary mixing, secondary mixing.
3.Cutting system : speed adjustable
4.Vacuum creation system:consists of vacuum water tank, vacuum pump, vacuum buffer tank, vacuum pipe, vacuum pressure gauge, check valve and three-way deflation valve.
5.The automatic water supply system includes storage water tank, water pumps, water inlet and outlet pipes, quantitative valve, flow meter and water tower.
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 4
The mold is imported from Italy, the material is copper + Teflon, and the mold plate is made of copper, which will make the surface of the produced product smoother.
Is subsequently pasteurized to break down the bacterial load, dried to remove the moisture present in the cooled surface and to prevent that the bacteria can multiply. After undergoing the treatments, the product is weighed and packaged by thermoforming or vertical packaging. If necessary, the product after the packing can be further treated to achieve a longer shelf life: the sterilization. In this case it is transported to the input of a static cell to undergo a second pasteurization and immediately after it is cooled by chiller..
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 5

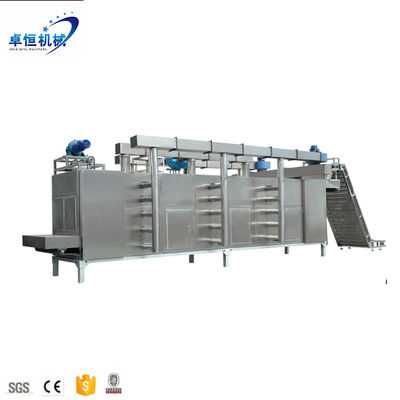

Function: Low temperature and slow baking ventilation, with double doors, heat preservation material at 50-60℃ for 6-8 hours, energy saving 40%-50% than conventional Function: evenly heated, better baked products
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 6
Click here for detailed information
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 7
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 8
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 9
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 10
Jinan Zhuoheng Extrusion Machinery Co.,LTD established since 2008 year byexperienced engineers. We SINCERELY treat every customer and provide excellent after-sale service.
Zhuoheng has developed a "one stop factory" for the food machinery industry.Zhuoheng has a comprehensive manufacturing program offering equipment and systems to customers in the extruded snack food processing machinery and allied industries. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 11
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 12
Exported countries:
Asia { Thailand, Indonesia, East Timor, South Korea, India, Bangladesh, Saudi Arabic, Turkey, Iraq, Israel,Kazakhstan,Tajikistan,Uzbekistan, Turkmenistan }
Africa { Nigeria, Benin, Algeria, Egypt, Ethiopia, Ghana, Namibia, Uganda, Zimbabwe}
Europe { Russia, Bulgaria, Ukraine, Poland}
North America { America, Canada }
South America { Brazil, Bolivia }
Oceania { New Zealand }
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 13
Delivery: 20-40 working days after deposit.
Packing:Machines are always wrapped by film completely and safely and then packed in strong fumigated case and 20'/40' container for delivery.
Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution 14
FAQ
Q1. Are you a manufacturer or a trading company?
A: We are a professional manufacturer of food & feed extrusion machine.
We have own factory and R&D department. SGS has certified our company on site.
Q2. What is your payment terms?
A: Strongly recommend to use Alibaba’s Trade Assurance.
T/T :30% prepayment,70% before delivery. L/C at sight is available.
Other payment is negotiable
Q3.Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q4. What about the lead time?
A:Regular products:20-30 working days Customizable products:30-40 working days.
Q5. Can you provide food or feed formula ?
A: We can provide basic formula for produce the food etc.
And help customer to produce new products according to customer’s formula.
Q6.What after-services do you provide?
A: Send engineers for installation, trial running and training workers at customer's site.
Handling the problems occurred during use.
Supply spare and wearing parts on discount.
Help customers to solve any other problems.
