Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm

Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm

Large Image :  Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm

Product Details:
Place of Origin: Shandong, China
Brand Name: zhuoheng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5,000.00/sets
Packaging Details: small macaroni making machine/short pasta extruder machine <br>Outer Packing---Wooden case <br>Inner Packing----Wrapped with plastic film.
Delivery Time: 20-30 days
Supply Ability: 100 Set/Sets per Month small macaroni making machine/short pasta extruder machine
Contact Now

Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm

Description
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Retail, Other Showroom Location: None
Condition: New Production Capacity: 120kg/h
Type: Pasta Voltage: 380V/50HZ 3 Phase
Power: 100kw Dimension(L*W*H): 22000x2500x3200mm
Weight: 1500 KG Warranty: 2 Years
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 2 Years
Core Components: Engine Key Selling Points: Long Service Life
Item: Short Pasta Extruder Machine/penne Pasta Making Machine Motor: SIMENS
Energy: Electrical Or Gas Or Fuel Function: Multifunction
Inverter: Delta Capacity: 30kg/h.50kg/h.80-100kg/h.160-220kg/h
Electric Parts: LG,FUJI,Omron Etc Product Name: Short Pasta Extruder Machine/penne Pasta Making Machine
Automatic: Full Automatic Color: Silver

Products Description
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 0
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 1
Model
Installed Power
Consumption Power
Output
Host size
          ZHK
           3.75kw
      30-40kg/h
          1.3x0.65x1.2m
TXF-100
35kw
21kw
80-100kg/h
2.2x0.8x1.8m
TXF-200
50kw
37kw
200kg/h
3.9x2.8x4.5m
TXF-300
60kw
45kw
300kg/h
4.5x3.5x4.5m

100kg/h
200kg/h
Frequency converter
Delta
Delta
Electrical device
Schneider (such as: air switch, AC contactor)
Schneider (such as: air switch, AC contactor)
Main motor
Siemens
Siemens
PLC controller system
Schneider
Schneider
Host speed
25r/min
35r/min
Rotary cutting speed
100r/min
100r/min
Product Details
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 2
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 3
The purpose of automatic Italian pasta production lines is the production, processing and packaging of food dough (which can be long and short) having a shelf life that generally ranges from a few weeks up to about three months. The product is realized by means of kneading and molding, which are different depending on the required format and the kind of pasta to be produced.
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 4
This machine line can use wheat flour as main material to make different shapes pasta , like tube , elbow , screw , shell etc .Equipment configuration is perfect , advanced production technology ; good quality products , simple and reliable operation ; is the ideal equipment to make macaroni .
1.Vacuum feeding system: it will convey the flour to the storage hopper on top of the extrusion unit automatically.
2.Vacuum mixing and extrusion system: mixing and extrusion both are in vacuum condition, mixing includes high-speed mixing, primary mixing, secondary mixing.
3.Cutting system : speed adjustable
4.Vacuum creation system:consists of vacuum water tank, vacuum pump, vacuum buffer tank, vacuum pipe, vacuum pressure gauge, check valve and three-way deflation valve.
5.The automatic water supply system includes storage water tank, water pumps, water inlet and outlet pipes, quantitative valve, flow meter and water tower.
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 5

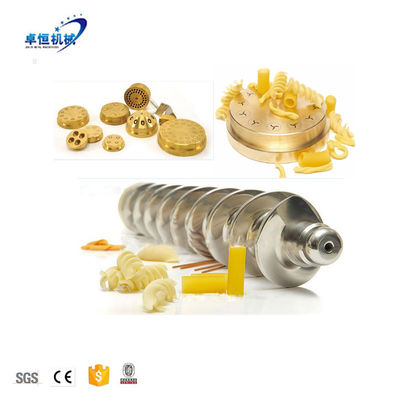

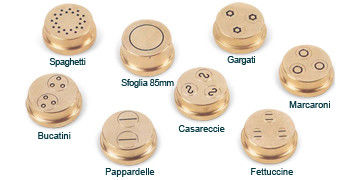

The mold is imported from Italy, the material is copper + Teflon, and the mold plate is made of copper, which will make the surface of the produced product smoother.
Is subsequently pasteurized to break down the bacterial load, dried to remove the moisture present in the cooled surface and to prevent that the bacteria can multiply. After undergoing the treatments, the product is weighed and packaged by thermoforming or vertical packaging. If necessary, the product after the packing can be further treated to achieve a longer shelf life: the sterilization. In this case it is transported to the input of a static cell to undergo a second pasteurization and immediately after it is cooled by chiller..
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 6
Function: Low temperature and slow baking ventilation, with double doors, heat preservation material at 50-60℃ for 6-8 hours, energy saving 40%-50% than conventional Function: evenly heated, better baked products
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 7
Click here for detailed information
Our Services
Communicating with customers and learn your requirement
Providing professional advisory services, Providing solutions according to customers' requirement,And offer the quotation Providing on-site visit to our factory providing samples
Send engineers for installation, trial running and training workers.
Handling the problems occurred during use.
Supply spare and wearing parts on discount.
Help customers to solve any other problems
Company Profile
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 8
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 9
Jinan Zhuoheng Extrusion Machinery Co.,LTD established since 2008 year byexperienced engineers. We SINCERELY treat every customer and provide excellent after-sale service.
Zhuoheng has developed a "one stop factory" for the food machinery industry.Zhuoheng has a comprehensive manufacturing program offering equipment and systems to customers in the extruded snack food processing machinery and allied industries. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.
Cases and exhibitions
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 10
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 11
Exported countries:
Asia { Thailand, Indonesia, East Timor, South Korea, India, Bangladesh, Saudi Arabic, Turkey, Iraq, Israel,Kazakhstan,Tajikistan,Uzbekistan, Turkmenistan }
Africa { Nigeria, Benin, Algeria, Egypt, Ethiopia, Ghana, Namibia, Uganda, Zimbabwe}
Europe { Russia, Bulgaria, Ukraine, Poland}
North America { America, Canada }
South America { Brazil, Bolivia }
Oceania { New Zealand }
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 12
Delivery: 20-40 working days after deposit.
Packing:Machines are always wrapped by film completely and safely and then packed in strong fumigated case and 20'/40' container for delivery.
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 13
Engine Core Components Automatic Home Pasta Manufacturing Machine 22000x2500x3200mm 14
FAQ
Q1. Are you a manufacturer or a trading company?
A: We are a professional manufacturer of food & feed extrusion machine.
We have own factory and R&D department. SGS has certified our company on site.
Q2. What is your payment terms?
A: Strongly recommend to use Alibaba’s Trade Assurance.
T/T :30% prepayment,70% before delivery. L/C at sight is available.
Other payment is negotiable
Q3.Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q4. What about the lead time?
A:Regular products:20-30 working days Customizable products:30-40 working days.
Q5. Can you provide food or feed formula ?
A: We can provide basic formula for produce the food etc.
And help customer to produce new products according to customer’s formula.
Q6.What after-services do you provide?
A: Send engineers for installation, trial running and training workers at customer's site.
Handling the problems occurred during use.
Supply spare and wearing parts on discount.
Help customers to solve any other problems.
