Core Components Pump Corn Breakfast Cereal Making Machine Customized

Core Components Pump Corn Breakfast Cereal Making Machine Customized
Core Components Pump Corn Breakfast Cereal Making Machine Customized Core Components Pump Corn Breakfast Cereal Making Machine Customized Core Components Pump Corn Breakfast Cereal Making Machine Customized Core Components Pump Corn Breakfast Cereal Making Machine Customized Core Components Pump Corn Breakfast Cereal Making Machine Customized Core Components Pump Corn Breakfast Cereal Making Machine Customized

Large Image :  Core Components Pump Corn Breakfast Cereal Making Machine Customized

Product Details:
Place of Origin: Shandong, China
Brand Name: ZhuoHeng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $120,000.00/sets 1-4 sets
Packaging Details: wooden case Extruded cereal and cornflakes making machinery/cornflex extruder
Delivery Time: 20-30 days
Supply Ability: 25 Set/Sets per Month Extruded cereal and cornflakes making machinery/cornflex extrude
Contact Now

Core Components Pump Corn Breakfast Cereal Making Machine Customized

Description
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Other Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 2 Years
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump Condition: New
Voltage: Customized Power: 22kw
Weight: 1500 KG Dimension(L*W*H): 3*0.8*1.8m
Year: 2024 Warranty: 2 Years
Key Selling Points: Sustainable Machine's Material:: Stainless Steel
Capacity: 180kg/h-220kg/h Accessories:: Heating Pipes,moulds,wrench
Name: Extruded Cereal And Cornflakes Making Machinery/cornflex Extruder Raw Material: Corn Flour
Material: Food Grade Stainless Steel Product Name: Extruded Cereal And Cornflakes Making Machinery/cornflex Extruder
Function: Extrusion After-sales Service Provided: Service Machinery Overseas
Feature: High Efficiency Easy Operation

Products Description
Core Components Pump Corn Breakfast Cereal Making Machine Customized 0
Model
Installed Power
Consumption Power
Output
Dimension
ZH65
310kw
186kw
120-150kg/h
39000x1200x2200mm
ZH70
348kw
208kw
200-250kg/h
41000x1500x2200mm
ZH85
425kw
255kw
400-500kg/h
43000x3500x4300mm
Core Components Pump Corn Breakfast Cereal Making Machine Customized 1

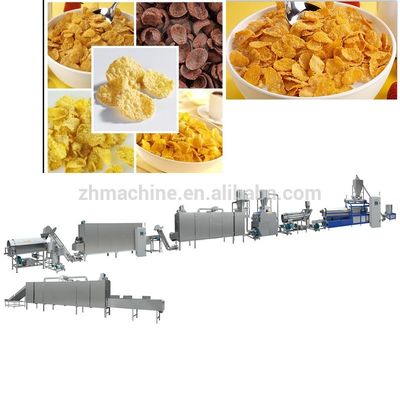

Mixing Raw material -----Extruding----Pressing flakes-----Pre-drying----Drying----Coating----Drying----Cooling----Packing
Core Components Pump Corn Breakfast Cereal Making Machine Customized 2
Core Components Pump Corn Breakfast Cereal Making Machine Customized 3

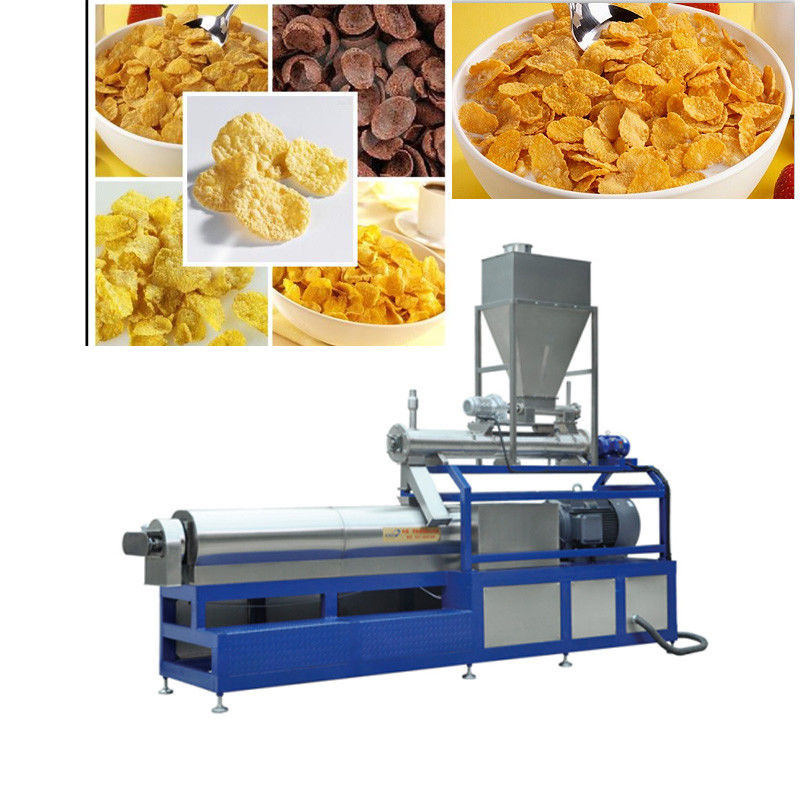

Best price corn flakes production machine is a kind of crispy food which is processed by twin- screw extruder and takes grist as basic material. The majority are fiber flimsy, and either too sugary or too salty.Snacks food processing line can be directly extruded from the extruder, dryer and seasoner, we can produce all kinds of snacks and different shapes by adjusting the dies from extruder. Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder. Raw materials: Corn Grits (Powder), wheat flour, rice flour, oat meal, other grain meals.
Core Components Pump Corn Breakfast Cereal Making Machine Customized 4
Core Components Pump Corn Breakfast Cereal Making Machine Customized 5
1.Zhuoheng Extruded corn flakes breakfast cereal production line machinery machine price efficiently produce a vast range of cereal flakes that meet an evolving demand for consumption at breakfast or snack. 2. Many raw materials are eligible with coating recipes such as sweet syrups, honey, chocolate and other compositions. 3. Flakes and loops are the great classical breakfast food and have been adopted by a majority of consumers around the world. The twin-screw extrusion lines allow to process a vast range of recipes adapted to all tastes and needs. 4. Flakes are either consumed plain or coated with a variety of sugars, malted ingredients, honey, fruit flavors,chocolate, etc.
Core Components Pump Corn Breakfast Cereal Making Machine Customized 6
Core Components Pump Corn Breakfast Cereal Making Machine Customized 7
Core Components Pump Corn Breakfast Cereal Making Machine Customized 8
Click here for detailed information
Core Components Pump Corn Breakfast Cereal Making Machine Customized 9
Core Components Pump Corn Breakfast Cereal Making Machine Customized 10

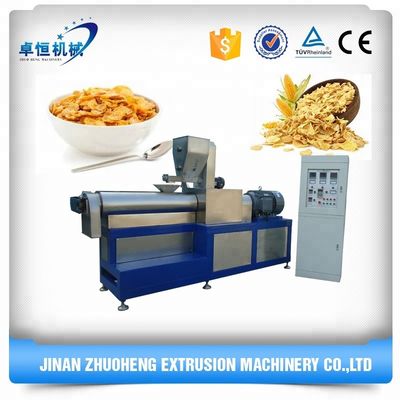

1. We specialize in high capacity extruder which can reach 500kg/h 2. The screw material: Alloy steel (38CrMoAL) by nitriding process. High strength and wear-resting. With good self-cleaning ability, it's unnecessary to remove the barrel and screws for cleaning. 3. SIMENS (China) Motor 4. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding device guarantees stable materials feeding in the whole food process. 5. Adopted the Delta inverters, ensure the extruder better running. 6. The gearbox has automatic lubrication function, which prolong service life of gears. 7. Cutting knife is fixed in the die head seat, rotary cutting driven by V-belt.
Core Components Pump Corn Breakfast Cereal Making Machine Customized 11
Core Components Pump Corn Breakfast Cereal Making Machine Customized 12
Core Components Pump Corn Breakfast Cereal Making Machine Customized 13
Jinan Zhuoheng Extrusion Machinery Co.,LTD established since 2008 year byexperienced engineers. We SINCERELY treat every customer and provide excellent after-sale service.
Zhuoheng has developed a "one stop factory" for the food machinery industry.Zhuoheng has a comprehensive manufacturing program offering equipment and systems to customers in the extruded snack food processing machinery and allied industries. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.
Core Components Pump Corn Breakfast Cereal Making Machine Customized 14
Core Components Pump Corn Breakfast Cereal Making Machine Customized 15
Exported countries:
Asia { Thailand, Indonesia, East Timor, South Korea, India, Bangladesh, Saudi Arabic, Turkey, Iraq, Israel,Kazakhstan,Tajikistan,Uzbekistan, Turkmenistan }
Africa { Nigeria, Benin, Algeria, Egypt, Ethiopia, Ghana, Namibia, Uganda, Zimbabwe}
Europe { Russia, Bulgaria, Ukraine, Poland}
North America { America, Canada }
South America { Brazil, Bolivia }
Oceania { New Zealand }
Core Components Pump Corn Breakfast Cereal Making Machine Customized 16
Delivery: 20-40 working days after deposit.
Packing:Machines are always wrapped by film completely and safely and then packed in strong fumigated case and 20'/40' container for delivery.
Core Components Pump Corn Breakfast Cereal Making Machine Customized 17
FAQ
Q1. Are you a manufacturer or a trading company?
A: We are a professional manufacturer of food & feed extrusion machine.
We have own factory and R&D department. has certified our company on site.
Q2. What is your payment terms?
A: Strongly recommend to use Alibaba’s Trade Assurance.
T/T :30% prepayment,70% before delivery. L/C at sight is available.
Other payment is negotiable
Q3.Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q4. What about the lead time?
A:Regular products:20-30 working days Customizable products:30-40 working days.
Q5. Can you provide food or feed formula ?
A: We can provide basic formula for produce the food etc.
And help customer to produce new products according to customer’s formula.
Q6.What after-services do you provide?
A: Send engineers for installation, trial running and training workers at customer's site.
Handling the problems occurred during use.
Supply spare and wearing parts on discount.
Help customers to solve any other problems.
